The shortest pogo pin on the market

In the field of precision electronic connectors, pogo pins (spring pins) have become key components for reliable electrical connections in consumer electronics, industrial equipment, and other scenarios due to their compact structure and stable contact performance. Cnomax Technology's SMT-1.6H model, positioned as the "shortest on the market," sets a technological benchmark in the miniaturized connector race. The following analysis examines its product parameters, technological innovations, application scenarios, and industry significance.

1. Core Parameters: Balancing Miniaturization and High Performance

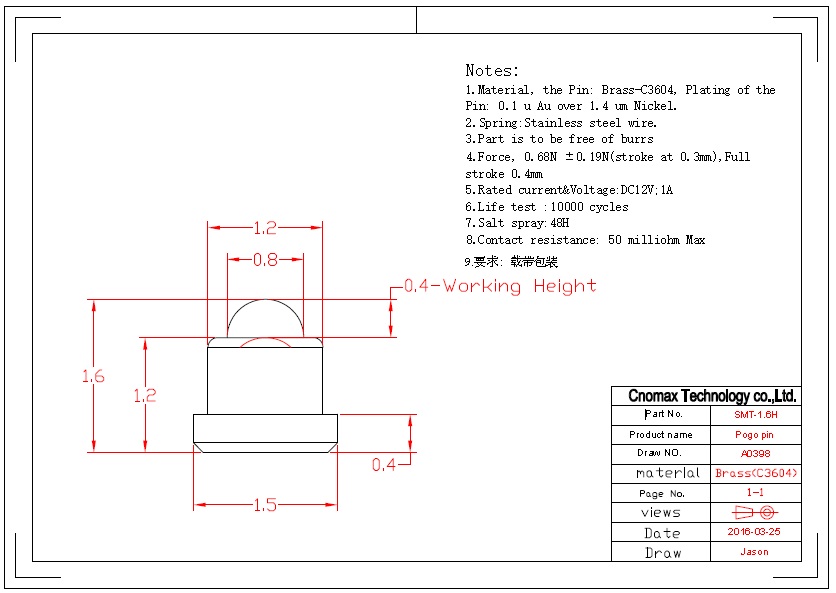

As seen in the engineering drawings and technical specifications, the SMT-1.6H achieves a dual breakthrough in both extreme size compression and performance indicators:
Physical Dimensions: The working height is only 0.4mm, and the main structural dimensions (length × width × height) are approximately 1.5mm × 1.2mm × 1.6mm. Among pogo pins, it is the "king of millimeter-level shortness," providing more possibilities for the internal layout of space-sensitive devices.

Materials and Plating: The needle body is made of C3604 brass (combining excellent conductivity and mechanical strength), with a 1.4μm nickel base and a 0.1μm gold coating. This ensures oxidation resistance during long-term contact and improves electrical transmission efficiency through the low contact resistance of the gold layer. The spring is made of stainless steel wire, maintaining elasticity stability during repeated compression and rebound.

Mechanical and Electrical Performance: The spring force is 0.68N±0.19N at a working stroke of 0.3mm, and the full stroke reaches 0.4mm, adaptable to contact interfaces of different thicknesses. The rated parameters are DC12V/1A, meeting the power supply and signal transmission requirements of consumer electronics and small industrial equipment. The contact resistance is ≤50mΩ, far below the industry-standard "milliohm level," resulting in minimal signal loss.

Reliability Verification: Passing 10,000 life cycle tests (simulating long-term insertion/removal/press mechanical durability) and a 48-hour salt spray test (verifying coating corrosion resistance), it ensures stable operation even in harsh environments such as humidity and high salt spray levels. This is crucial for applications in outdoor equipment and industrial settings.

2. Technological Innovation: The Engineering Logic Behind the Compact Design

The "shortest" design of the SMT-1.6H is not simply a size reduction, but an integration of a series of engineering innovations: Miniaturized Structural Engineering: Based on the classic structure of compression spring pins (pin shaft, spring, pin tube), precision mold processing and assembly techniques control the tolerances of each component to the micron level. This ensures a compact 0.4mm working height while avoiding problems such as spring jamming and pin shaft misalignment caused by excessively small dimensions.

The design perfectly balances spring force and stroke: The compact design means limited stroke margin. The R&D team used meticulous simulation calculations of spring wire diameter, number of coils, and needle shaft length to ensure the spring force within the 0.3mm working stroke is within the optimal range for reliable contact without damaging the interface. Simultaneously, the 0.4mm full stroke provides tolerance compensation during equipment assembly.

Optimized plating process: Achieving a uniform nickel-gold plating layer on the extremely thin needle surface requires precise control of electroplating current, time, and solution concentration. Cnomax, through a customized electroplating production line, ensures that the plating thickness deviation is within ±0.1μm, reducing costs while maintaining performance.

3. Application Scenarios: A Powerful Electrical Connection Tool for Space-Sensitive Devices

The compact size and high performance of this pogo pin make it irreplaceable in the following scenarios:
* Smartphones and Wearable Devices: For example, in the hinge area of foldable phones or between the motherboard and sensor module of smartwatches, the SMT-1.6H can be embedded in ultra-narrow gaps, enabling stable transmission of battery power and screen touch signals while avoiding increased device thickness due to excessive connector height.

* Miniature Medical Devices: For devices like insulin pumps and miniature monitors where internal space is extremely limited, the SMT-1.6H can complete circuit connections within a very small volume, and its high reliability ensures long-term stable operation of the device in complex human environments.

* Industrial Miniature Sensor and PCB Interconnection: In the miniature sensor nodes of the Industrial Internet of Things (IIoT), the SMT-1.6H can be used for temporary/permanent connections between PCB boards and external probes, supporting rapid testing and mass assembly in automated production lines; in high-density PCB stack-up designs, it can also serve as a key component for vertical interconnection between boards.

Consumer electronics peripherals: For example, inside the charging case of TWS earbuds, the SMT-1.6H can serve as the contact point between the earbuds and the charging dock, achieving charging and data synchronization within a millimeter-level space, improving product integration and aesthetics.

4. Industry Significance: Driving the Expansion of Micro-connector Technology Boundaries

The emergence of the Cnomax SMT-1.6H is not only a successful product, but also represents the development trend of "miniaturization + high performance" in the pogo pin field:

For downstream terminal manufacturers, it breaks the dilemma of "space constraints leading to compromises in connection solutions," providing more freedom for product miniaturization and thinner design, and helping the industry upgrade its competitiveness in portability and integration.

For the connector industry, its technical parameters (such as 0.4mm working height and 50mΩ contact resistance) set a new performance benchmark, driving innovation and iteration in materials, processes, and structural design, accelerating the entire category towards greater precision and reliability.

Cnomax's differentiated positioning as the "shortest" magnetic connector has established a competitive barrier in its niche market, with its penetration rate expected to continue to increase, particularly in consumer electronics and micro-devices, becoming a symbol of the brand's technological strength.

In summary, the Cnomax SMT-1.6H, with its status as the "shortest pogo pin on the market," has achieved breakthroughs in size, performance, and reliability. It is not only an essential component for miniaturized electronic devices but also a typical microcosm of technological advancement in the connector industry. Its application value and innovative significance will continue to be realized in a wider range of scenarios.
