Case description of using magnetic connector to solve charging problem in walkie-talkie

In the daily use of walkie-talkie, the charging process often faces many challenges, and the disadvantages of traditional charging methods are gradually highlighted. The emergence of magnetic connector provides an efficient solution to the problem of charging walkie-talkie. The following will elaborate on this case in detail.

1. Pain points of traditional walkie-talkie charging method

Traditional walkie-talkies generally use physical Pogo pin or USB interface for charging, which has many problems in practical applications.
In terms of plug-in convenience, traditional interfaces need precise alignment to complete the connection. In emergency scenarios, such as fire rescue and security patrol, operators often find it difficult to quickly complete the charging connection due to tension or complex environment, which may delay work. Moreover, long-term frequent plug-in and pull-out will cause the interface to wear, loosen, poor contact, etc., affecting the charging efficiency, and even making the walkie-talkie unable to charge normally.
In terms of environmental adaptability, the sealing of traditional interfaces is poor. In outdoor, construction sites, humid environments and other scenarios, dust and water vapor can easily enter the interface, causing short circuit or corrosion, greatly shortening the service life of the walkie-talkie. For example, in outdoor operations during the rainy season, walkie-talkies with traditional charging interfaces are often damaged by water ingress, increasing the cost of equipment maintenance.
In addition, traditional charging methods lack protection against mis-insertion. If a charger of different specifications is mistakenly inserted, the internal circuit of the walkie-talkie may be burned, causing equipment failure. At the same time, the connection strength between the charging cable and the interface is weak. When accidentally pulled, it will not only interrupt charging, but also cause the interface to break, further damaging the device.

2. Advantages of Magnetic Connector

The Magnetic Connector can effectively solve the pain points of traditional charging methods with its unique design and performance. Its advantages are mainly reflected in the following aspects:
Fast and convenient connection: The Magnetic Connector uses the principle of magnetic adsorption. There is no need for precise alignment. Just bring the charging end close to the charging interface of the walkie-talkie to achieve automatic adsorption connection, which greatly improves the charging connection speed. In an emergency, the operator can complete the charging connection in a few seconds to ensure the continuous use of the walkie-talkie.
Excellent environmental adaptability: The interface design of the magnetic connector usually has good sealing, which can effectively block the entry of dust and water vapor, and has excellent waterproof and dustproof performance, which can adapt to various harsh environments. Even in rainy days, wet basements or dusty construction sites, charging can be completed stably and reliably.
Reduce wear and extend life: Since magnetic connection does not require hard contact of physical plugging and unplugging, it avoids the wear of traditional interfaces caused by frequent plugging and unplugging, reduces the probability of interface failure, and thus extends the service life of the intercom and connector.
Anti-misplugging and anti-pulling protection: Magnetic Connector usually adopts polarity recognition design, and only the charging end with the correct polarity can be connected to the intercom, effectively preventing equipment damage caused by misplugging. At the same time, when the charging cable is accidentally pulled, the magnetic connection will automatically disconnect to prevent the intercom from being dragged and dropped or the interface from being damaged.

3. Implementation plan of Magnetic Connector in intercom charging

(I) Demand analysis and selection
Before introducing the Magnetic Connector, a comprehensive analysis of the usage scenario, intercom model, charging parameters, etc. is required. According to the working environment of the intercom, determine the waterproof level (such as IP67, IP68), temperature resistance range, seismic resistance, etc. of the required magnetic connector. At the same time, combined with the charging voltage, current and other parameters of the walkie-talkie, select a matching magnetic connector model to ensure charging efficiency and safety.
For example, the walkie-talkie used at a construction site has a dusty working environment, high vibration, and needs to be charged frequently. After analysis, a magnetic connector with IP67 waterproof and dustproof rating, temperature resistance range of -40℃ to 85℃, and support for 2A current output was selected.
(II) Modification and adaptation of walkie-talkies

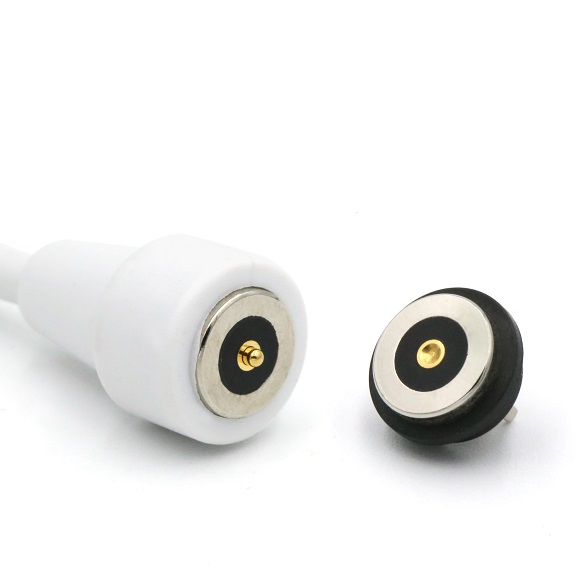

According to the selected magnetic connector specifications, the charging interface of the original walkie-talkie is modified. Remove the traditional charging interface, install the female socket of the magnetic connector at the corresponding position, and perform circuit connection and sealing to ensure that the connector is tightly combined with the walkie-talkie body to achieve good waterproof and dustproof effects.
During the modification process, the circuit design specifications must be strictly followed to avoid affecting the normal function of the walkie-talkie due to wiring errors. At the same time, the appearance of the modified walkie-talkie is inspected to ensure that it does not affect its grip and ease of use.
(III) Design of the charging base
In order to charge the modified walkie-talkie, a special charging base is designed, and the male socket of the magnetic connector is installed on the base. The charging base can be in various forms such as desktop, wall-mounted or vehicle-mounted to adapt to different usage scenarios.
The magnetic strength of the male and female sockets must be precisely adjusted to ensure that the connection is stable and can be easily disconnected when separation is required. In addition, the charging base must also have overcurrent and overvoltage protection functions to ensure the safety of the charging process.

4. Application effect and user feedback

(I) Application effect
After using the Magnetic Connector, the charging efficiency of the walkie-talkie is significantly improved. Operators can complete the charging connection within a few seconds, saving a lot of time. In harsh environments, the waterproof and dustproof performance of the connector is fully reflected, and the damage rate of the walkie-talkie due to charging interface failure has dropped by more than 80%.

At the same time, due to the reduction of interface wear, the service life of the walkie-talkie is extended by 2-3 years, reducing the cost of equipment replacement. The anti-misinsertion and anti-pull protection functions also effectively avoid accidental damage and ensure the stable operation of the walkie-talkie.

(II) User feedback
The front-line operators gave high praise to the new charging method. Firefighters said that at the emergency rescue site, the magnetic connection can quickly complete the charging, ensuring that the walkie-talkie always maintains smooth communication; construction workers believe that in dusty and humid environments, the new Pogo pin charging interface is more durable and no longer needs to worry about equipment damage; security personnel mentioned that the magnetic connection of the vehicle charging base is stable and reliable, and there will be no disconnection during vehicle driving.

5 Summary and Outlook

Magnetic Connector provides an efficient and reliable solution to the problem of charging walkie-talkies. By solving the pain points of traditional charging methods, it improves the efficiency and reliability of walkie-talkies and reduces operation and maintenance costs.
In the future, with the continuous development of technology, the application of Magnetic Connector in the field of walkie-talkies will be more extensive. There may be magnetic connectors that integrate more functions, such as charging and data transmission at the same time, further improving the intelligence level of walkie-talkies. At the same time, its cost may also decrease with large-scale application, promoting more industries to adopt this advanced charging technology.
